Robotic Sorting Equipment Guide: Systems, Sorting Methods, Automation, Uses and Key Features

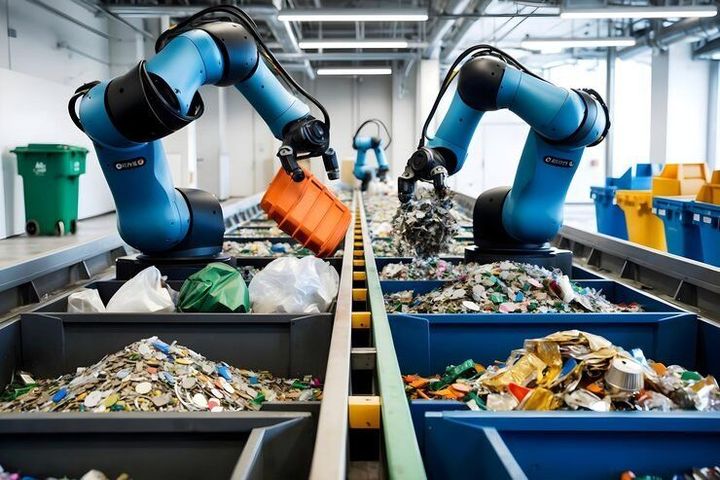

Robotic sorting equipment refers to automated systems that identify, separate, and move different materials or products according to defined characteristics. A typical system can combine conveyor belts, cameras, sensors, software, robotic arms, grippers, and collection areas. These systems are used in recycling facilities, warehouses, manufacturing plants, food processing, and other environments where many items need to be separated in a consistent sequence.
Context
Robotic sorting equipment refers to automated systems that identify, separate, and move different materials or products according to defined characteristics. A typical system can combine conveyor belts, cameras, sensors, software, robotic arms, grippers, and collection areas. These systems are used in recycling facilities, warehouses, manufacturing plants, food processing, and other environments where many items need to be separated in a consistent sequence.
The idea comes from industrial automation. Earlier sorting processes depended heavily on manual inspection or simple mechanical separation. As cameras, sensors, machine vision, robotics, and computing developed, systems became able to recognize objects using material type, shape, color, size, location, or other visible features.
Robotic sorting equipment is particularly relevant when incoming material contains many different items. In a recycling facility, a system may identify bottles, containers, paper, metals, or unwanted material and direct them into different streams. In manufacturing, it can separate components by dimensions, surface characteristics, or production category.
Importance
Sorting is an important part of many material-handling processes because mixed items can be difficult to process in their original form. A clear separation stage helps create more consistent material streams and can support later processing steps.
Where robotic sorting systems are used
Applications vary according to the material and the required sorting method. Common areas include:
- Recycling and material recovery facilities
- Packaging and distribution operations
- Food and agricultural processing
- Automotive component handling
- Electronics recovery and processing
- Parcel and warehouse operations
- Manufacturing inspection and part separation
The main practical value comes from combining identification with physical movement. A camera or sensor may detect an object, software may classify it, and a robotic arm may then pick or redirect it.
Robotic sorting can reduce repetitive handling in some environments. People may still monitor equipment, maintain systems, manage exceptions, inspect outputs, and handle materials that automated equipment cannot classify reliably.
Key factors that affect sorting
The performance of a sorting system depends on the incoming material and the way the equipment is configured. Important factors include:
- Material composition and consistency
- Object size, shape, weight, and surface condition
- Conveyor speed and spacing between objects
- Camera and sensor capability
- Software classification rules
- Robotic arm reach and movement range
- Gripper design
- Required separation categories
- Cleaning, inspection, and maintenance needs
A system designed for rigid packaging may use different sensors and grippers from one designed for small metal parts. Robotic sorting equipment is therefore usually configured around a defined material stream rather than one universal arrangement.
Systems and Sorting Methods
A robotic sorting system normally contains several connected stages. Material enters the system, moves through an inspection area, is identified, and is then directed to a selected output.
Common system components
| Component | Main role | Typical use |
|---|---|---|
| Conveyor | Moves material through the system | Continuous material flow |
| Camera | Captures visual information | Shape, color, label, object recognition |
| Optical sensor | Detects material properties | Material identification |
| Control software | Processes sensor information | Classification and decision making |
| Robotic arm | Moves selected objects | Picking and placement |
| Gripper | Holds an object | Bottles, parts, containers, packages |
| Collection area | Receives sorted material | Separate output streams |
| Safety system | Controls access and movement | Guarding and emergency stops |
Sorting methods can be combined when one detection method cannot provide enough information. Common methods include optical sorting, which uses cameras or related sensors; magnetic separation, which targets ferrous metals; eddy-current separation, which can separate certain non-ferrous metals; dimensional sorting, which uses size or shape; and robotic picking, where an arm physically removes selected objects from a moving stream.
Vision-based robotic sorting
Machine vision is a central part of many modern systems. Cameras capture images while software analyzes characteristics such as color, shape, position, or surface appearance. More advanced systems can use machine-learning models to classify objects from visual patterns.
The system must also estimate where an identified object will be when the robotic arm reaches the picking zone. Sensors, conveyor tracking, and motion control therefore work together.
Robotic sorting automation
Automation connects sensing, classification, movement, and monitoring. A typical sequence is:
- Material enters a conveyor.
- Sensors collect information about each item.
- Software classifies the item.
- The control system calculates the appropriate action.
- A robotic arm or mechanical device redirects the item.
- The item enters a designated output stream.
The sequence can be adjusted for different layouts, with one robot handling a narrow task or several robots operating across multiple sorting stages.
Recent Updates
From 2024 through 2026, robotic sorting has increasingly been connected with artificial intelligence, machine vision, data collection, and flexible automation. The direction is toward systems that can recognize a wider range of objects and adapt classification models as material streams change.
Recent industry developments also show greater use of AI-enabled vision in recycling. Current systems can combine cameras, optical sorting, robotics, and data analysis so that identification and physical picking are handled as parts of one workflow. This trend is particularly relevant where incoming material is variable and contains many object types.
In India, robotics has received greater policy and research attention. A February 2026 government discussion examined advanced robotics, physical AI, industrial cobotics, testing, certification, standards, and domestic technology development.
Manufacturing policy discussions have also identified robotics, artificial intelligence, machine learning, digital twins, and advanced materials as important technologies for future manufacturing systems. These developments support a broader shift toward connected automation rather than isolated machines.
Sorting equipment can also collect data about object categories, throughput, rejected material, and system conditions. The exact data features depend on the equipment and application.
Laws or Policies
In India, robotic sorting equipment used for waste processing operates within the wider environmental and workplace framework. The Solid Waste Management Rules, 2026 were notified by the Ministry of Environment, Forest and Climate Change in January 2026, replacing the earlier framework. The rules address segregation, collection, processing, material recovery facilities, and related solid-waste responsibilities.
These rules are relevant to robotic sorting because material recovery facilities can use mechanical, optical, sensor-based, and robotic equipment for material separation.
For electronic waste, the E-Waste (Management) Rules, 2022 and subsequent amendments apply to specified participants in the electronic-waste chain. The Central Pollution Control Board maintains information on registration, extended producer responsibility systems, technical guidance, and related requirements.
Plastic waste is covered by a separate regulatory framework, while construction and demolition waste has its own rules. Therefore, the applicable requirements depend on the material being processed, the facility, and the activities taking place there. Workplace safety, guarding, emergency controls, electrical safety, and applicable state or local requirements also need to be considered when robotic equipment is installed.
Tools and Resources
Several public resources can help readers understand robotic sorting equipment and the regulatory environment around it.
Government and technical resources
The Central Pollution Control Board website provides sections covering municipal solid waste, plastic waste, e-waste, construction and demolition waste, technical guidance, rules, and related environmental information. It can be used to check current regulatory material and technical documents.
The Ministry of Environment, Forest and Climate Change maintains notifications and rules covering solid waste and other waste categories. These documents are useful when checking the current legal framework for a particular material stream.
For equipment planning, a sorting specification sheet can record material type, object size, expected throughput, output streams, detection method, robot reach, gripper type, conveyor dimensions, safety controls, and maintenance intervals.
FAQs
What is robotic sorting equipment?
Robotic sorting equipment is an automated system that identifies items and physically separates them into defined categories. It commonly combines sensors, machine vision, control software, conveyors, robotic arms, and grippers.
How does a robotic sorting system work?
A robotic sorting system usually detects an item with cameras or sensors, classifies it through software, tracks its position, and then directs it to the appropriate output using a robot or another mechanical mechanism.
What sorting methods are used in robotic sorting?
Common sorting methods include optical identification, magnetic separation, eddy-current separation, dimensional sorting, and robotic picking. Several methods can be combined when one detection method is not sufficient.
Where is robotic sorting automation used?
Robotic sorting automation is used in recycling, manufacturing, warehouses, packaging, food processing, electronics recovery, and other material-handling environments. The configuration depends on the type of items being separated.
What factors matter when evaluating a robotic sorting system?
Important factors include the material stream, object size and shape, conveyor speed, sensor capability, classification method, robot reach, gripper design, output categories, safety controls, and maintenance requirements.
Conclusion
Robotic sorting equipment combines sensing, software, conveyors, and robotic movement to separate materials or products into defined categories. Sorting methods can include optical identification, magnetic separation, dimensional analysis, and robotic picking, depending on the application. From 2024 to 2026, the field has continued moving toward AI-enabled vision, connected automation, and more flexible robotic systems. In India, waste-management rules and related environmental requirements provide an important policy context for facilities that use automated sorting.
